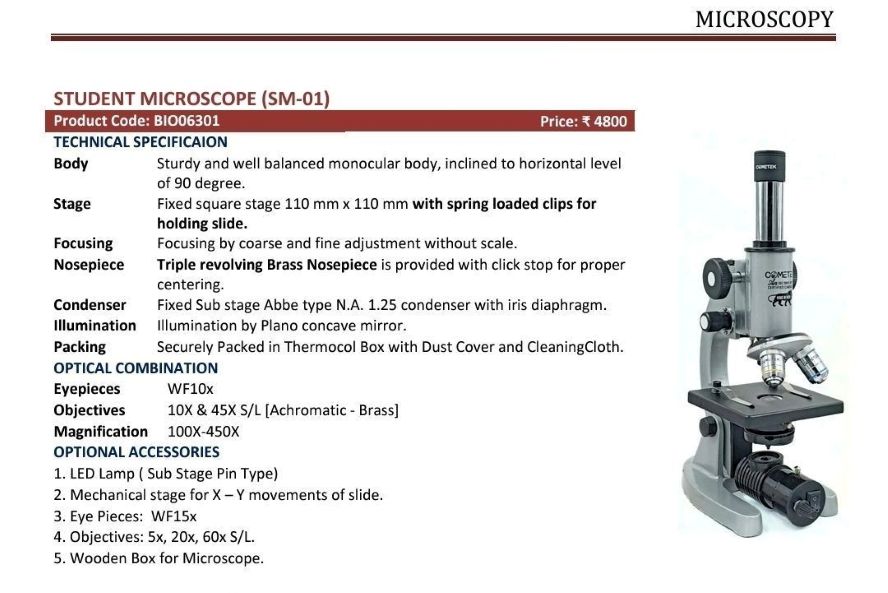

TECHNICAL SPECIFICAION
Body Sturdy and well balanced monocular body, inclined to horizontal level
of 90 degree.
Stage Fixed square stage 110 mm x 110 mm with spring loaded clips for
holding slide.
Focusing Focusing by coarse and fine adjustment without scale.
Nosepiece Triple revolving Brass Nosepiece is provided with click stop for proper
centering.
Condenser Fixed Sub stage Abbe type N.A. 1.25 condenser with iris diaphragm.
Illumination Illumination by Plano concave mirror.
Packing Securely Packed in Thermocol Box with Dust Cover and CleaningCloth.
OPTICAL COMBINATION
Eyepieces WF10x
Objectives 10X & 45X S/L [Achromatic – Brass]
Magnification 100X-450X
OPTIONAL ACCESSORIES
1. LED Lamp ( Sub Stage Pin Type)
2. Mechanical stage for X – Y movements of slide.
3. Eye Pieces: WF15x
4. Objectives: 5x, 20x, 60x S/L.
5. Wooden Box for Microscope.
